HOTWASH R100 LT BASIC 3PH 400V

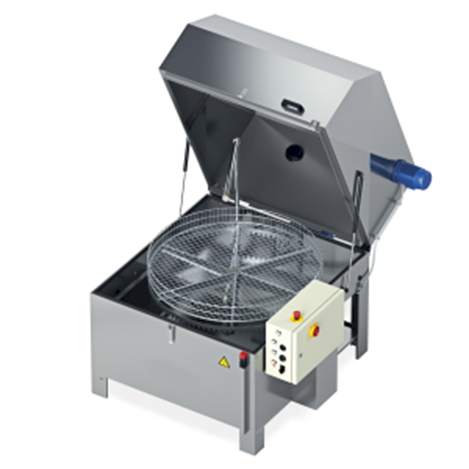

This Rozone Hotwash R100 LT is the optimal system for the automatic washing of medium size mechanical parts. The Washing process is carried out by the action of upper, lower and side nozzles that spray the cleaning solution into all parts of the component. The Aisi 304 stainless Basket rotates through the vertical axis by means of a gear motor.
Operators can set the tank liquid temperature as well as the length of the treatment cycle.
The unit comes fitted with an extractor fan that is set to a specific time to run after the wash cycle has been completed.
- Structure and sheet metal in contact with liquid in Aisi 304 stainless steel Basket in drawn sheet metal with external border in AISI 304 stainless steel, Aisi 304 stainless steel filter in pump intake Aisi 304 stainless steel washing pipelines with professional stainless steel flat nozzles
- Heating of the liquid with stainless steel electric heating element
- Safety limit switch on cover opening
- Tank Capacity 210 lt
- Pressure 6 bar 250 lt/min
- Stainless steel electric pump with special seals
- Mechanical rotation of basket via gearmotor
- Manual water filling valve
- Heater 6 kW
