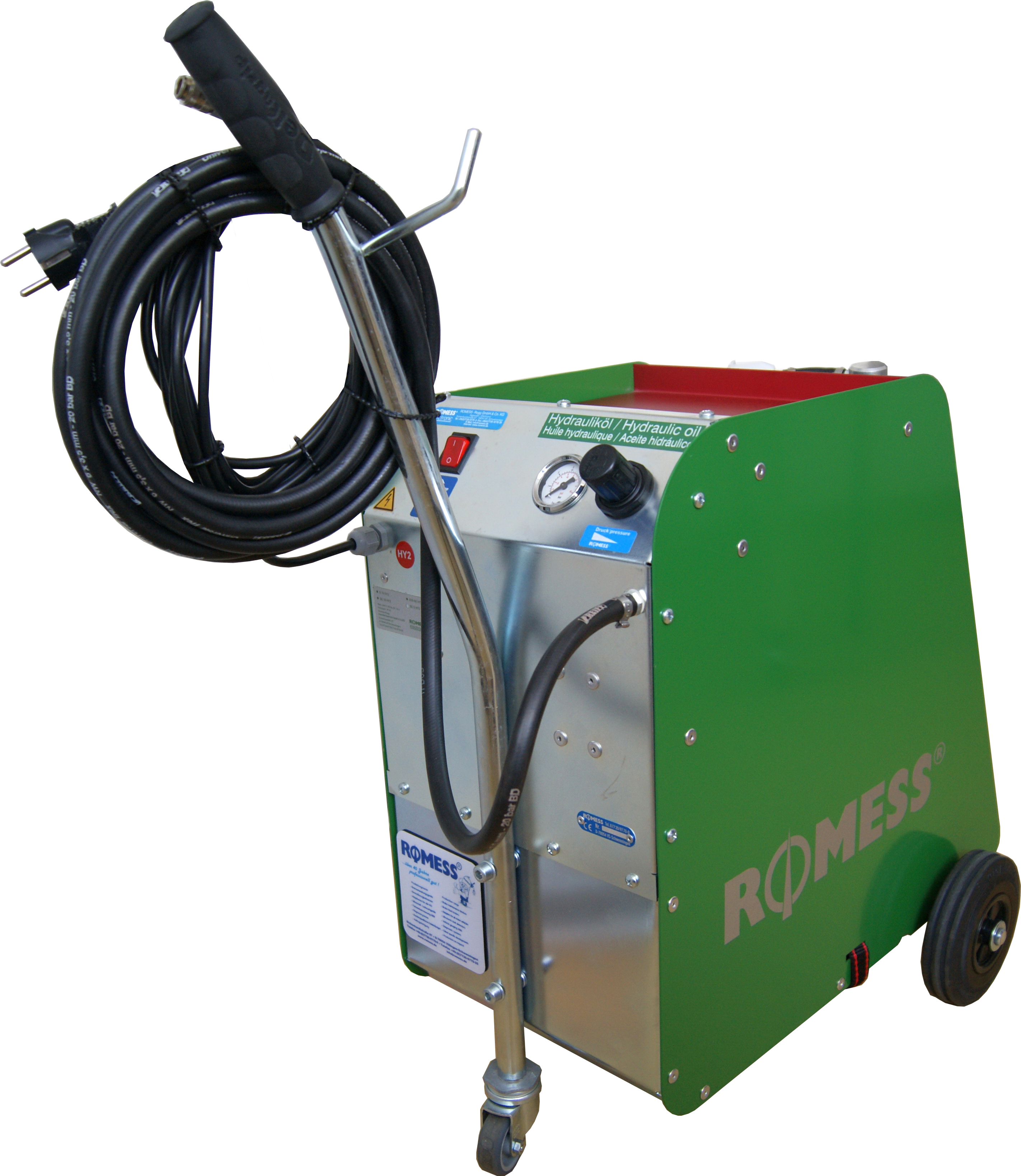

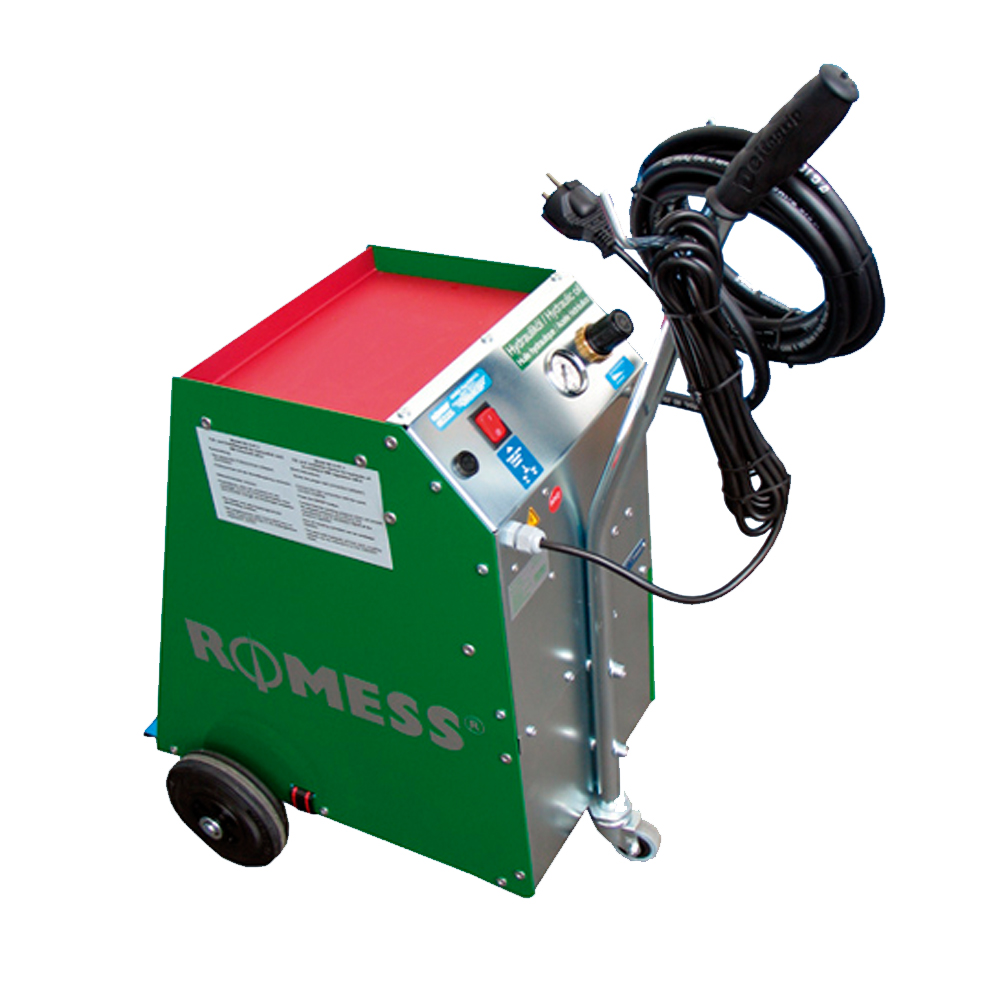

SE5 HY2 Brake & Clutch Bleeding System
Pack size: Unit
Designed for Pentosin brake fluid, the SE5 HY2 has different fittings to the SE5 unit so that the brake fluid cannot be cross contaminated
- One man operation, fill- and ventilation system for hydraulic oil. For the use with 20 litre canisters.
- The fluid level inside the main tank is monitored by a floater valve and the pump automatically shuts off when the tank reaches the minimum fluid level of 1.5 liters to avoid air being inadvertently pumped into the hydraulic system. It is not necessary to disconnect the device from the vehicle to change canisters because there is no air in the line. After changing to a full canister, the pump can be started again and the process can continue
- The tank pipe comes with a screw adapter to fit Pentosin canisters. The canister is placed safely inside the integrated compartment behind the control panel and secured with an adjustable belt. The unit pumps the fluid throughout the hydraulic system complete with no churning of the fluid or air pockets. The working pressure can be adjusted from 0.4 to 3.5 bar
- Once the process is complete and the pump is turned off, the built-up pressure escapes through the integrated re-circulation system and the fluid level inside the reservoir adjusts itself accordingly. Once the pressure has fallen to 0 bar/psi, the quick-lock coupling can be disconnected from the bleed valve without spilling hydraulic fluid.
